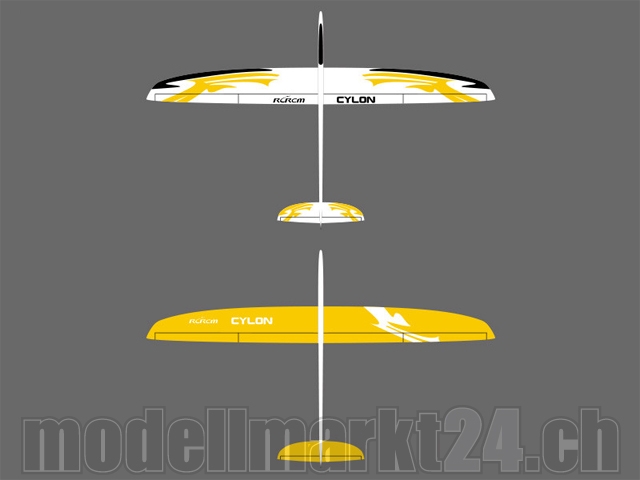

RCRCM Cylon CFK Spw 2m Gelb/Weiss mit Schutztaschen

RCRCM 2000mm Wingspan Slope Racer – Cylon

The Cylon is a 2m wing glider and xtail, full composite and designed for flight in slope that will be manufactured also in electric version. We decided to use the same concept as estabilizador with elevator that gives us good resulting in xtail Tabu, so achieving a perfect trim! In the wings we find two high performance mixed profiles that will give different benefits depending on the needs of each pilot, which will allow each customer to enjoy a high performance flight. Is appropriate to say that the CYLON will be the first of a series of gliders who will be flying soon on many hillsides world.

Manufactured with the best composite materials and special resins, give the Cylon hardness necessary in order to demand their full potential. Pilots will have a very easy glider to transport and assemble in the slope and also will can enjoy a flight agile, fast and with high dynamic performances.

Features
- Able to fly in almost any conditions and equipped with a full house complement of ailerons, rudder, elevator and flaps.
- Control Surfaces: Rudder, Elevator, Ailerons and Flaps
- Two-piece hollow molded composite Carbon Fiber or Glass wing design
- Carbon Fiber reinforced wing with square wing joiner
- Live hinges on the wing and rudder with pre-installed wipers
- Smooth, gel-coated finish with pre-painted graphics
- Full flying stabilizer with pre-installed bellcrank

Lieferumfang
- RCRCM Cylon 2m CFK ARF Seglerversion
- Farbe: Gelb/Weiss
- Ballast Tube , Motor mount, Servo tray, Push Rod, Clevis, Linkage Rod, Control horn, Servo Cover, Wing joiner, tail joiner, servo plate

Technische Daten
- Preferences: MOTORLESS
- Wingspan: 2000mm
- Length: 1250mm
- Wing area: 34.9dm2
- Flying Weight: around 1600g
- Empty Weight: Glass + Carbon Standard 1124g
- Full carbon 1170g
- CG: 90-95 mm from leading edge
- Tow hook setting: NO
- Ailerons: YES
- Elevator: YES
- Rudder: YES
- Flaps: YES

Empfohlenes Zubehör
- Required Radio: No less than 7 channels
- Recommend equipment configuration for a motorless version Basic configuration
- Servos for wings: 4x KST DS135MG
- Servos for fuselage: 2x KST DS215MG
- Required Battery: 4.8-6V

The Settings for Cylon
- CG: 90 - 95mm from leading edge
- Elevator: 5mm up / 8mm down (5mm for flying / 8mm needed for Butterfly)
- Rudder: 15mm each side (as much as you can get)
- Ailerons: 15mm up (or more if you like) / 5-8mm down (or more if you like)
- Butterfly: Ailerons: 20 mm up / Flaps: 45° - 60° down / Elevator: 6mm down
