| Slots & Poles | 12n10p |
| Winding T | YY |
| rpm/V | 930 |
| Volt (V) | 10 / 22.2 |
| Io(A) | 1.3 / 2.1 |
| Rm (mohm) | 28 / 28 |
| Weight (without connector) (g) | 160 |
| Body Length (no shaft) mm | 40.0 |
| Diameter (mm) | 40.5 |

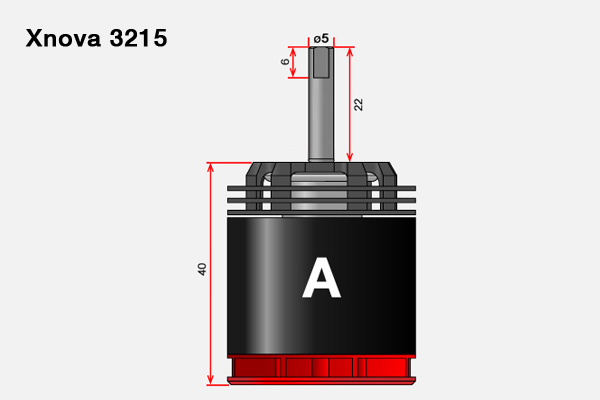

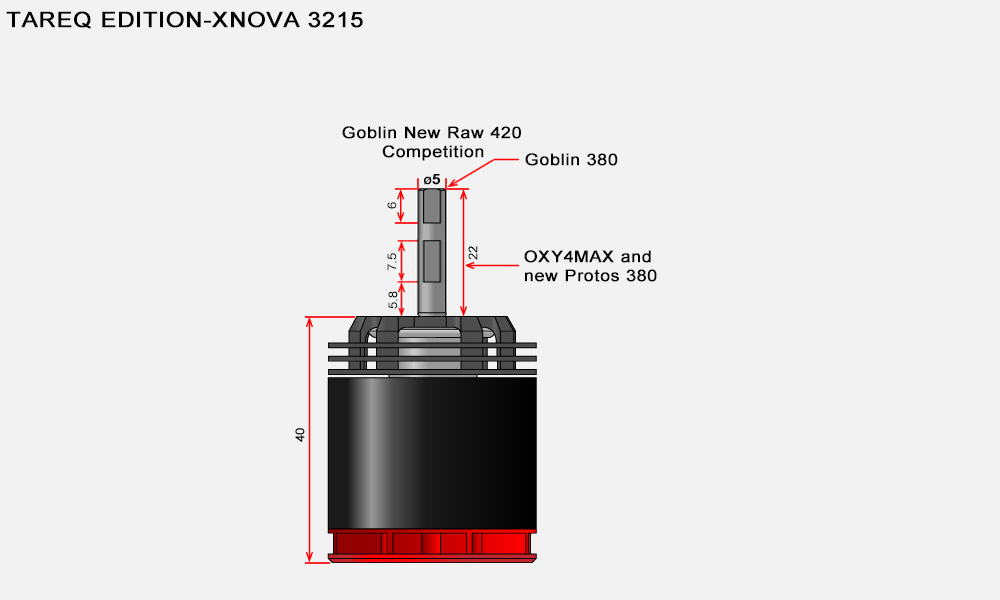

| Shaft Length (mm) (Details pictures) | All in one |
| Shaft Dia. (mm) | 5 |
| Mounting Holes CTC Distance (mm) | 25 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 21.55 / 40.80 |
| Max Eff. | 87.93 / 89.71 |
| Kt (Nm/A | 0.0103 |
| Km (Nm/sqrt(w)) | 0.0614 |
| Max Continuous Power(Watts) | 1280 |
| Peak Continuous Power(Watts) (2 sec) | 1700 |
| Max Continuous Current(Amps) | 58 |
Spezifikationen
| Länge [mm] | 40 |
| Gewicht [g] | 160 |
| Getriebe | kein |
| Achsdurchmesser [mm] | 5 |
| Außendurchmesser [mm] | 40.5 |
| Drehzahl / Volt [kV] | 930 |
