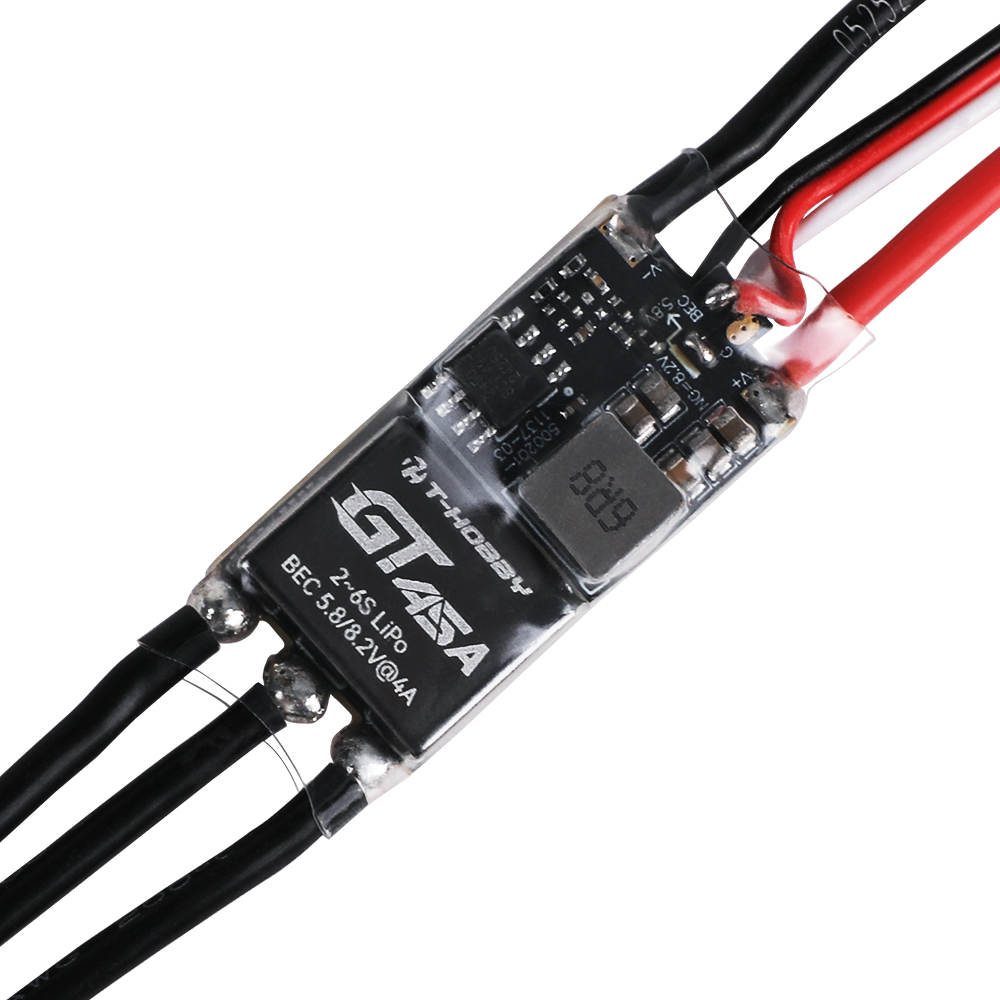

The T-HOBBY GT45A 45A FPV & Fixed-Wing ESC delivers smooth, precise, and efficient power control for FPV drones and racing wings. Designed for F2C, F3E, and F5D aircraft, it features an adjustable BEC and advanced cooling for stable high-speed performance.
Key Features
- Dual Application – Perfect for both FPV drones and fixed-wing aircraft.
- 45A Continuous Current – Stable performance even under high load conditions.
- Adjustable BEC (5.8V / 8.2V) – Flexible setup for different flight control systems.
- High Efficiency, Fast Response – Smooth throttle curve ensures precise control.
- Aluminum Heat Sink Design – Excellent cooling and extended component life.
- Compact & Lightweight – Easy to install and optimized for aerodynamic efficiency.
Why Pilots Choose GT45A
- Consistent, reliable output with integrated protection functions.
- Perfect match for high-speed FPV wings and F2C/F3E/F5D racing aircraft.
- Provides smooth throttle feel, high efficiency, and superior reliability.
Recommended Combo
Best Power System Setup:- GT2306 FPV Wing Motor + GT45A ESC
- Designed for F2C / F3E / F5D fixed-wing racing aircraft.
- Supports 2S–6S LiPo batteries.
- Delivers ultra-fast throttle response and stable current output.
- Ideal for FPV racing, long-range, and high-speed applications.
| Specifications | Details |
| Model | GT45A |
| Continuous Current | 45A |
| Maximum Current | 55A |
| Supported Voltage | 2-6S Lipo |
| BEC Output | 5.8V 3A / 8.2V 3A (Switchable) |
| ESC Weight | 16g (25g with packaging) |
| ESC Size | 33 x 15 x 8.8mm |
| Motor Wire | 100mm-16AWG / 3.5mm Banana Plug (Female) |
| Power Cord | 150mm-16AWG / XT30U-M Plug |
| Signal Wire | 200±10mm |
| Programming | AM LINK / Windows Run |
| PWM Frequency | 50-400Hz |
