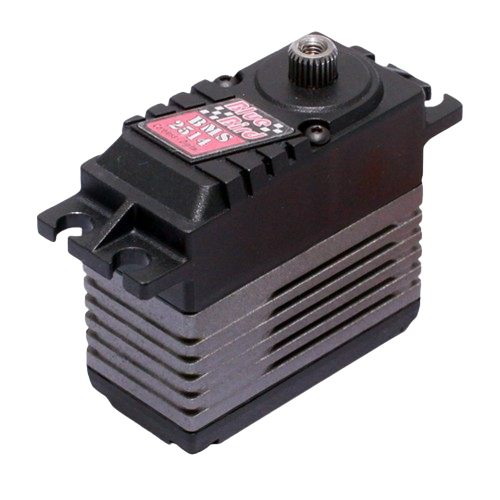

The Taiwanese brand Blue-Bird has been around in the Europe RC-industry for some years now. Trusted by show pilots from all over the world for their high performance specifications, they offer a wide range of servos going from tiny micro servos to large servos pulling over 70kgs. Since a few years, at Aerobertics we offer a wide range of BlueBird servos to match your project needs.
- Torque At 6.0V : 27.1 kg-cm / 376.4 oz-in
- Torque At 7.4V : 33.2 kg-cm / 461.1 oz-in
- Speed At 6.0V : 0.16 sec / 60°
- Speed At 7.4V: 0.13 sec / 60°
- Operating Voltage Range : 4.8V ~ 8.5V ( 2 Cell LiPo / 6 cell Ni-MH Compatible)
- Dead Band Width :2us
- Ball Bearing : Dual
- Gear : Titanium Alloy Gears
- Motor : Premium Coreless Motor
- Horn / Gear Spline: 25 Teeth ( Same as F-Type )
- Dimension (mm) : 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
- Weight (gram): 66 ± 1 grams / 2.33 oz
Spezifikationen
| Höhe [mm] | 39 |
| Länge [mm] | 40.5 |
| Typ | Micro |
| HV fähig (7,4V) | Ja |
| Gewicht [g] | 69 |
| Getriebe | Titan |
| Stellkraft [Ncm] | 326 |
| Breite [mm] | 20 |
| Spline/Verzahnung | 3F |
