Compact. Intelligent. Ready to Go.

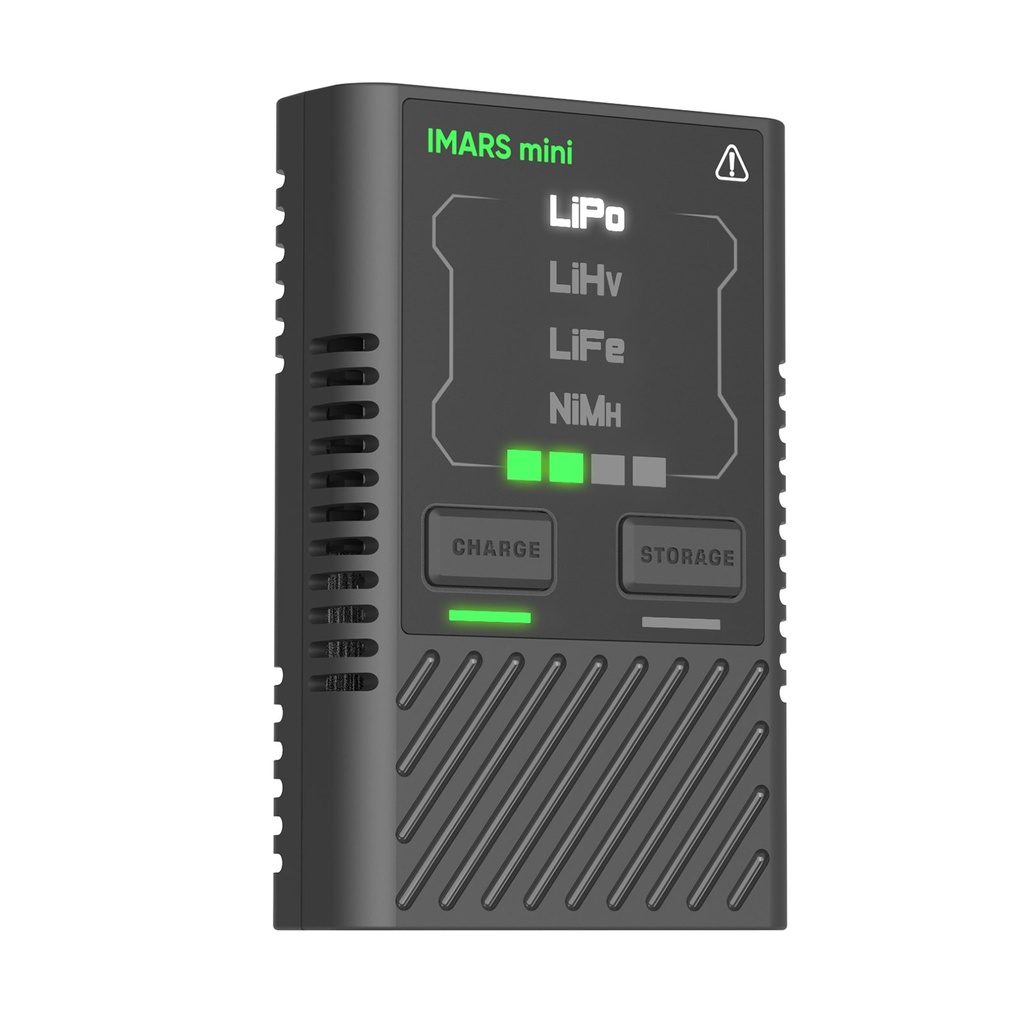

The iMars Mini is an intelligent charger built for Gens ace G-Tech smart batteries, while remaining fully compatible with non-smart batteries. As the first member of the G-Tech Smart Eco family, it offers fast and seamless charging.
Once a G-Tech smart battery is connected, the charger automatically detects battery type, voltage, and recommended current through its smart balance connector. Charging starts automatically after 5 seconds—no extra setup needed.
For non-smart batteries, just manually select battery type and mode. The charger will intelligently adjust charging current based on voltage flow. Whether it’s for weekly races or traveling abroad, the compact size makes it ultra-portable.
Key Features
- Compatible with 2–4S LiPo / LiHV / LiFe & 2–12S NiMH batteries.
- Auto-recognizes G-Tech smart battery details via built-in IC chip.
- Automatic storage mode — the smallest charger to offer this feature.
- Durable balance connector and refreshed user interface.
- Ultra-compact and travel-friendly design.
Specifications
- Max. Charge Power: 60W
- Charge Current: 1–5A (Auto-adjust)
- Storage Mode: 3W discharge / 60W charge
- Input Voltage: 5–20V
- Max. Input Current: DC 3A
- Balance Current: 0.4A/cell × 2
-
Input Port: QC / PD / BC1.2 / USB-C v1.4 / SDP / CDP / DCP / Apple 5V 2.4A
(Does not support 5V 1A adapters) - Battery Types: Lipo / LiHv / LiFe (2–4S), NiMH (2–12S)
- Operating Temp: 0℃ – 40℃
- Storage Temp: -20℃ – 60℃
- Dimensions: 85 × 55 × 21 mm
- Weight: Approx. 64g

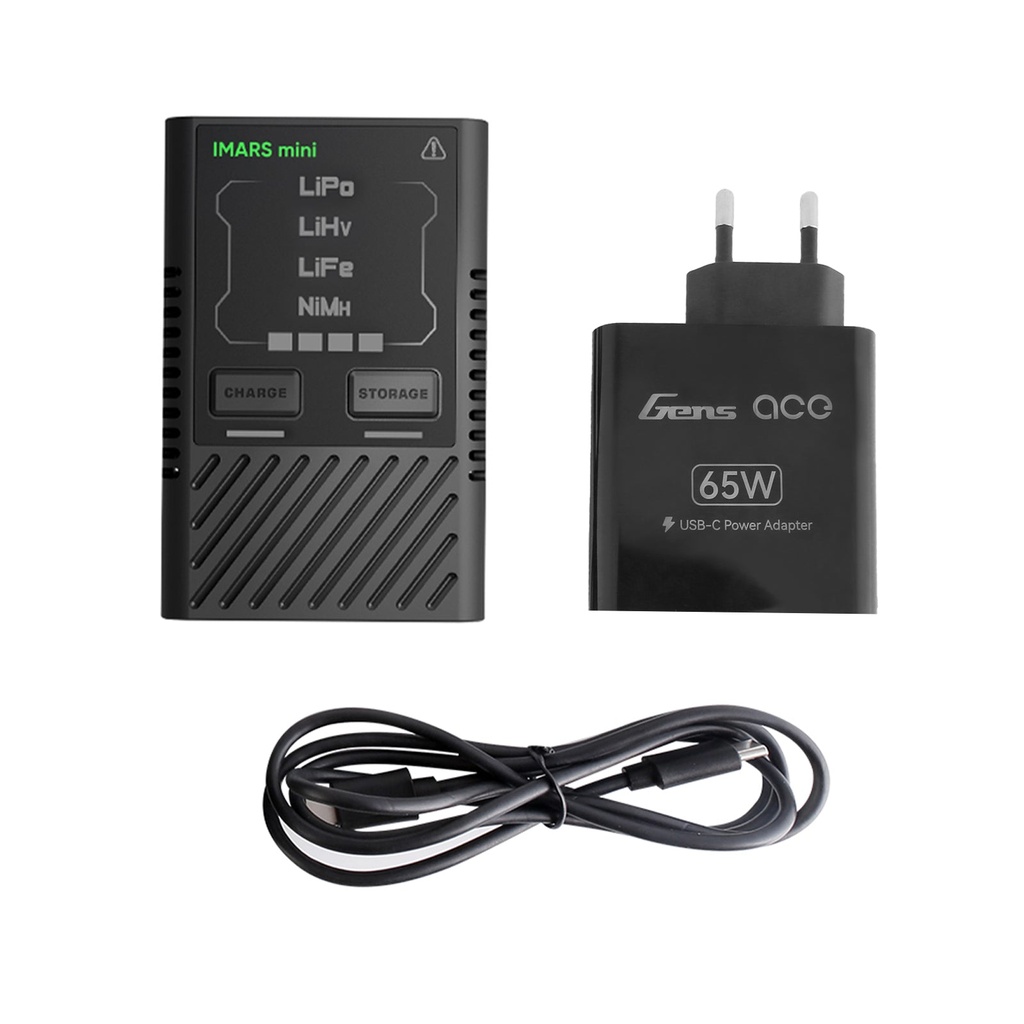

What's in the Box?
- iMars Mini 60W Smart Charger ×1
- 1m USB-C Power Cable ×1
- 65W Power Adapter ×1
- XT60 (F) to EC3 (M) Adapter ×1
- XT60 (F) to Deans(T) (M) Adapter ×1
- User Manual ×1
FAQs
Q: Why can’t I select the current setting?
A: The iMars Mini automatically adjusts current based on battery size and chemistry—whether it's G-Tech or not. It typically charges at 1C–1.5C up to 60W. No manual current selection is needed.
Looking for more smart chargers? Click here.
Downloads
Spezifikationen
| Zellenanzahl | 4 |
| Maximalstrom [A] | 0.7 |
| Höhe [mm] | 21 |
| Spannung [V] | 20 |
| Länge [mm] | 85 |
| Gewicht [g] | 64 |
| Akkutyp | LiFe |
| Breite [mm] | 55 |
| Zellen max. [LiPo] | 4 |
| Zellen min. [LiPo] | 2 |
| max. Ladeleistung [W] | 60 |
| Eingangsspannung DC [V] | 3 |
| Balancerstrom | 2 |
| Zellen max. [NiMh] | 12 |
| Eingangsspannung | DC / AC |
| Ladeausgänge | 1 |
