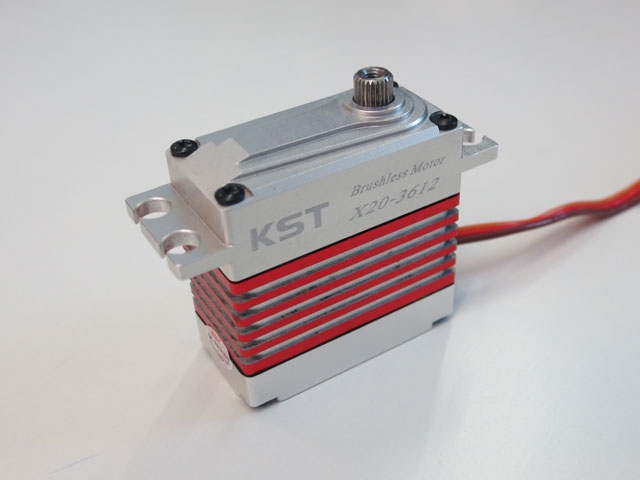

X20 Brushless - the High End Series from KST
The KST X20-3612 high-voltage brushless servo in a rugged aluminium housing with precision metal gearbox is a powerhouse among the servos. High-quality workmanship, very fast positioning times and perfect reset accuracy make the servo the first choice for Big Scale and Jet models.
Fast - Powerful - Accurate => KST
Features
- Brushless Motor
- Metal gear unit
- Double ball bearing mounted
- Relatively low weight
Technical details
| Operatin voltage (max.) [V]: | 6.0-8.4 |
| Torque[kg/cm]@4.8V: | -- |
| Torque[kg/cm]@6.0V: | 28.0 |
| Torque[kg/cm]@7.4V: | 36.0 |
| Torque[kg/cm]@8.4V: | 40.0 |
| Speed [s/60°]@4.8V: | -- |
| Speed [s/60°]@6.0V: | 0.150 |
| Speed [s/60°]@7.4V: | 0.120 |
| Speed [s/60°]@8.4V: | 0.110 |
| Breadth: | 20.0 |
| Length: | 40.5 |
| Height: | 42.0 |
| Weight: | 78.0 |
| Motor type: | Brushless |
| Frequency: | 1520us/333Hz, 900us-2100us |
| Gear: | Metal |
| Bearing: | 2BB |
| Spline: | H25T/3F |
| Type: | Standard |
| Electronics: | Digital |
| Sensor: | Potentiometer |
| Waterproof: | No |
| Manufacturers: | KST |
Scope of delivery
- 1 x Servo KST X20-3612
- Various rudder horns plastic
- Various fastening and securing screws
Spezifikationen
| Höhe [mm] | 42 |
| Länge [mm] | 40.5 |
| Typ | Standard |
| HV fähig (7,4V) | Ja |
| Gewicht [g] | 78 |
| Getriebe | Metall |
| Stellkraft [Ncm] | 400 |
| Breite [mm] | 20 |
| Nennspannung bis [V] | 8.4 |
| Nennspannung von [V] | 4.8 |
| Spline/Verzahnung | 3F |
| Lager | 2 |
