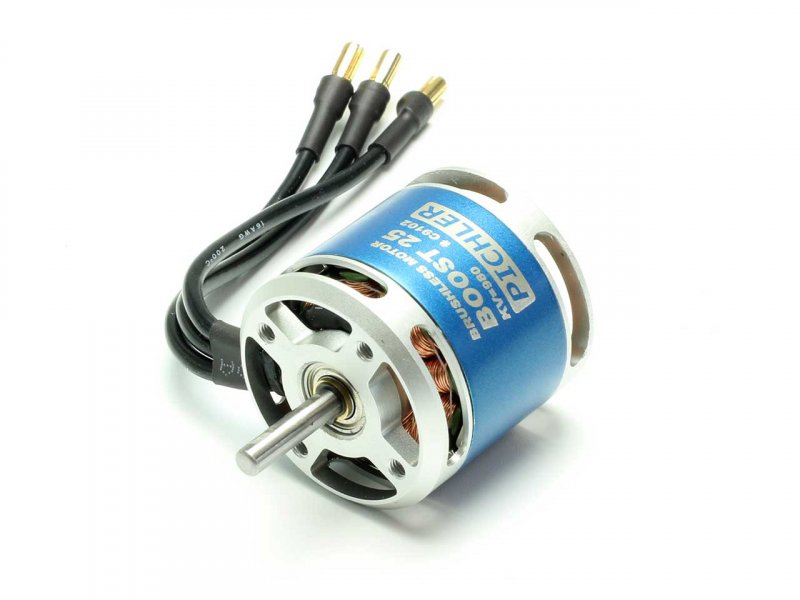

Brushless Motor BOOST 25 V2

High Quality Brushless Motor BLDC (Outrunner) for model airplanes. The BOOST motor series is the result of our over 15 years of experience in developing modern elektric power sets.

Features
* Premium Craftmanship
* Perfect ventilation for the whole motor
* Only the best materials are used for production
* High temperature resistant Neodym Magnets
* Oversized large ball bearings (3 ball bearings total)

Ideal for - Model flying weight
- 3D Aerobatic airplanes up to 1000g
- Aerobatic airplanes up to 1400g
- Trainer models up to 1800g
- Gliders up to 2000g

Content
- BOOST 25 Brushless Motor
- Machined Alumiunm mounting cross
- Prop adatpers front and rear
- Bits and Screws
- Manual German/Englisch

BOOST Brushless Motors Overview - Click here

Specifications
Dimensions	Ø = 35mm / L = 36mm
Weight	113g
Shaft Diameter	4.0mm
No. of LiPo Cells	2 -3 Zellen
KV / Revs per Volt	980 U/Min-1 (KV)
Max. Power Load / 30s	30A
Brushless Speed Controller (recommended)	PICHLER XQ-30, # C3056
Propeller (rec.)	PI-CON 10x5, # C5749 @ 3S LiPo (11,1V) PI-CON 11x7, # C5752 @ 2S LiPo (7,4V) PI-CON 12x6, # C5753 @ 2S LiPo (7,4V)
LiPo battery (rec.)	LEMONRC 2200-11,1V, # C6733 RED POWER 2700-11,1V, # C6782

Attention: Smaller propellers and multi blade props can be used other than mentioned. Also, batteries with different capacities can be used according to your needs. Please always make sure, the maxium power load (A) will not be exceeded. We highly recommend you to monitor the power using our POWER WATTS 150, Order N. C7282. This device should be always at your hands.
