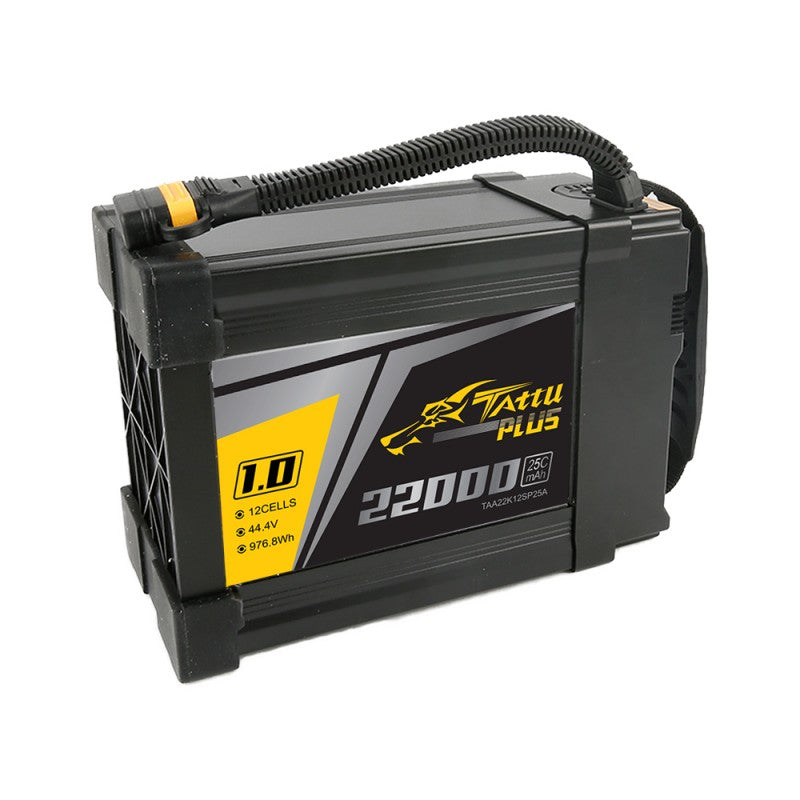

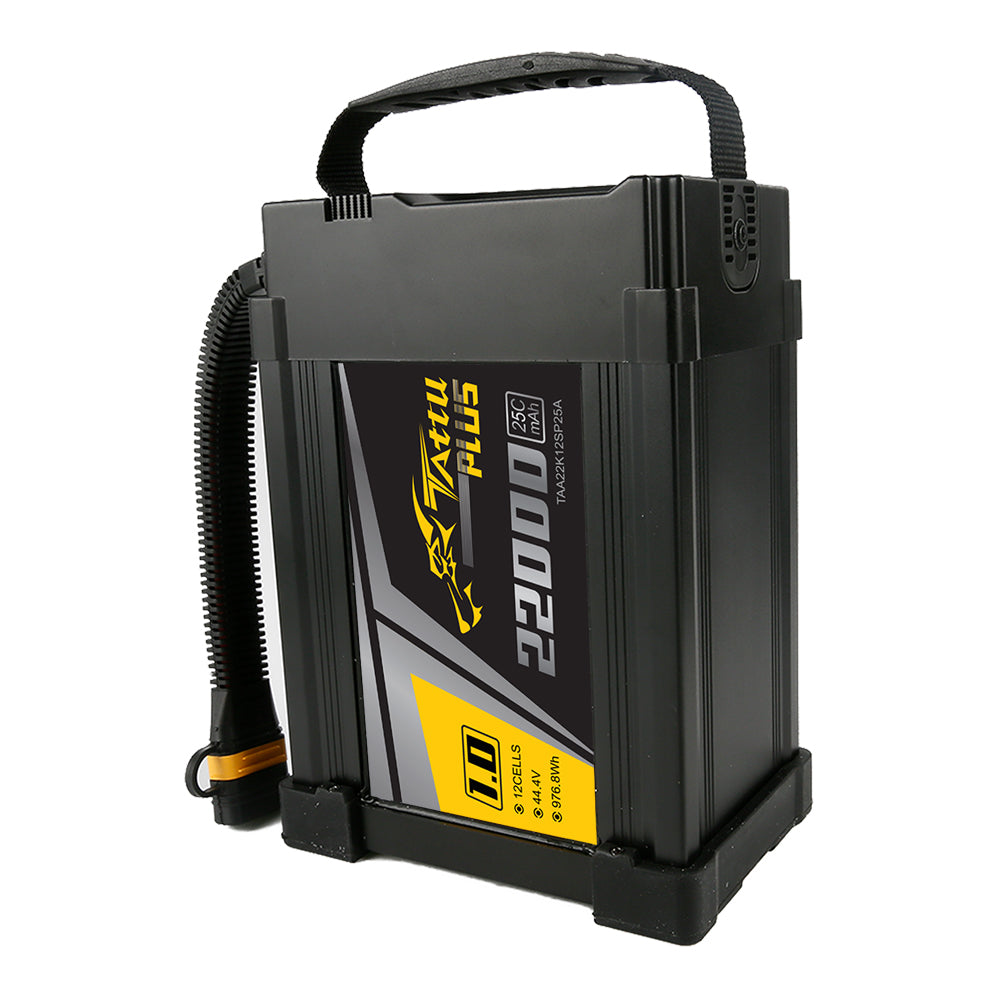

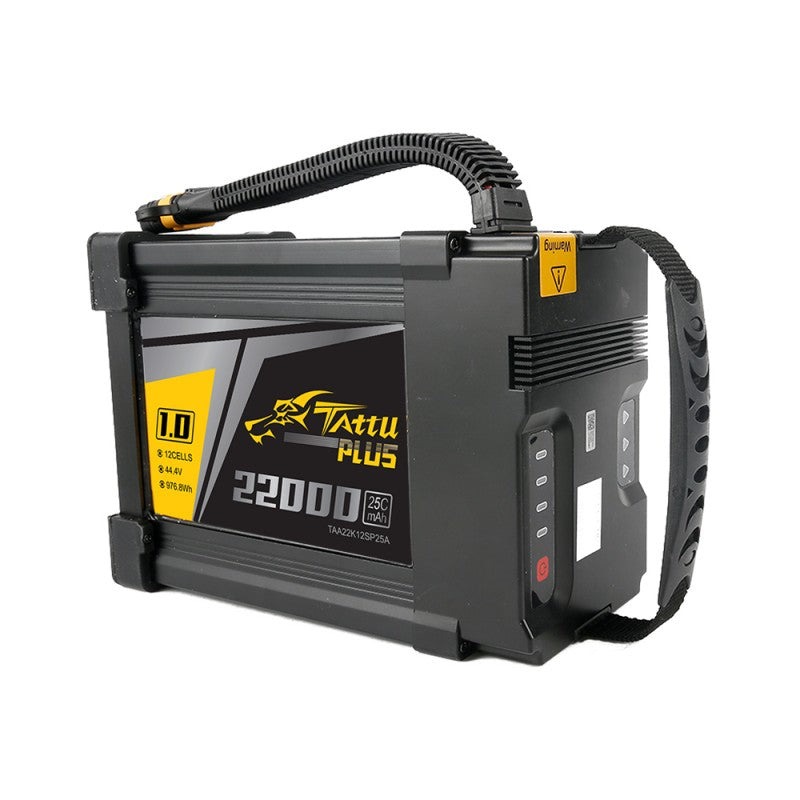

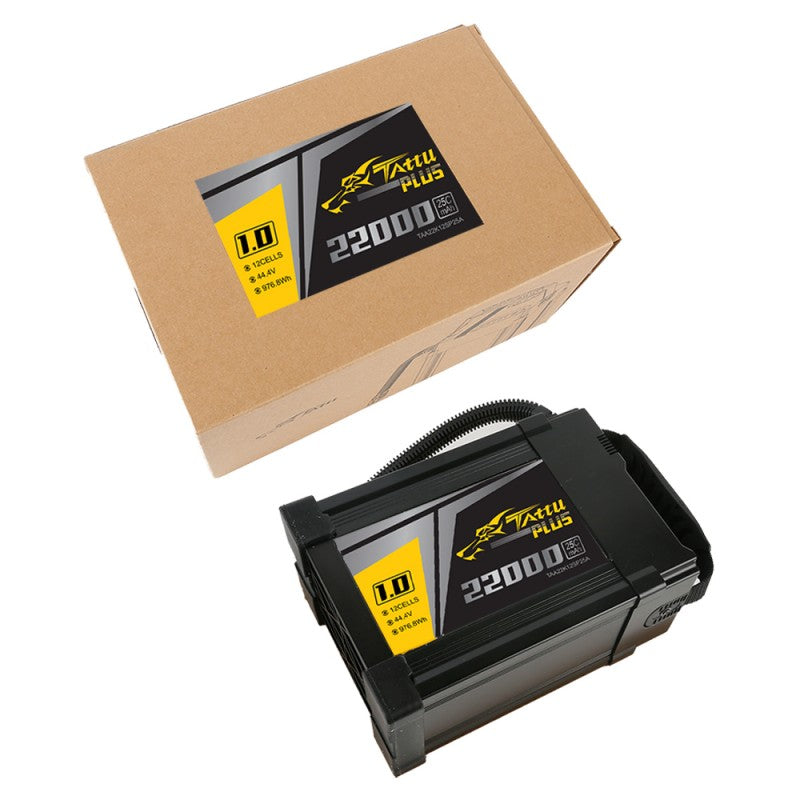

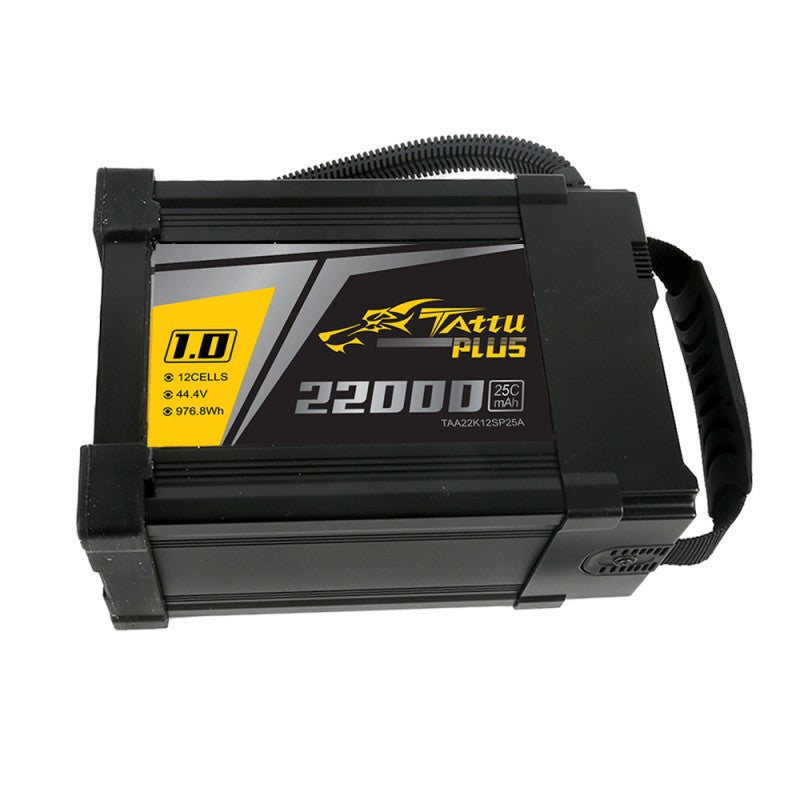

Tattu Plus 1.0 22000mAh 12S 25C 44.4V Lipo battery pack with AS150U Plug is suitable for Freefly AltaX; agricultural spraying drone; security mapping; power inspection and other industries drones. The whole system includes data acquisition; security warning; power calculation; automatic equalization; charging warning; discharge anti-sparking; support charging by charging butler; abnormal state alarm; human-computer interaction; history query; parameter configuration; etc. Also can access the battery pack status and battery pack working history data by CAN/SMBU communication port and host computer software.
Features:
1. Communication protocol CAN
2. Communication protection
3. Fuel gauge
4. Self-inspection
5. Using time log
6. Current detection
7. Ultra-Low power consumption
8. Abnormal log
9. Anti-spark
Specs:
- Capacity: 22000mAh
- Voltage: 44.4V
- Discharge Rate: 25C
- Weight: 6058g
- Size: 237*173*116mm
Usage:
Charger:
Recommended use of the Tattu matching charger: TA3000 /TA3200 / TA3200HV
Tattu TA3000 Dual Channel Smart Charger 60A/3000W for 12S-14S Lipo/LiHV Smart Battery
Tattu TA3200 Dual Channel Smart Charger 60A/3200W for 6S-14S Tattu Smart LiPo Battery
Our Service:
1. Your orders will be dispatched via UPS from Germany directly.
2. Fast shipping and excellent local after-sale service are guaranteed in Europe.
3. Service priority in the online shop; like the long warranty period and the lower price. We provide 1-year warranty; there would be a special discount provided for orders over 1 year.
4. Energy Density: Specially adapted to each UAV type and RC car/boat/heli type. Very High according to capacity/weight. We are specialists in High Power Lipo Batteries. It is our unique technology; the highest power of our battery is 100C. Another technology is our batteries can be stably discharged simultaneously.
5. Low IR: Provides stable voltage until the end of your mission.
6. Safety: Fulfill the ISO9001; and ISO14001 standards.
Spezifikationen
| Zellenanzahl | 12 |
| Maximalstrom [A] | 550 |
| Höhe [mm] | 116 |
| Spannung [V] | 44.4 |
| Kapazität [mAh] | 22000 |
| Länge [mm] | 237 |
| Gewicht [g] | 6058 |
| Akkutyp | LiPo |
| Entlade-Rate [C] | 25 |
| Breite [mm] | 173 |
| Steckertyp | AS150 |
| Eingangsspannung | AC |
| Ladeausgänge | 2 |
