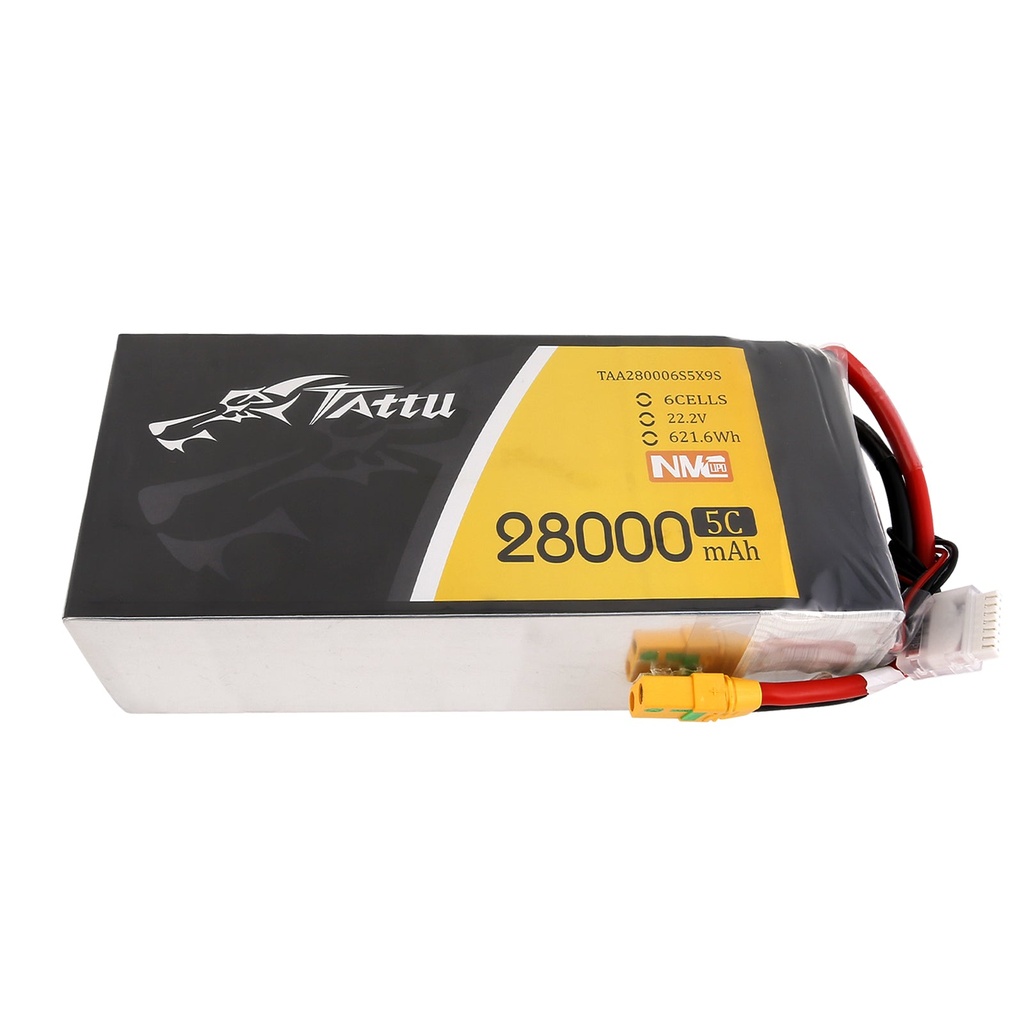

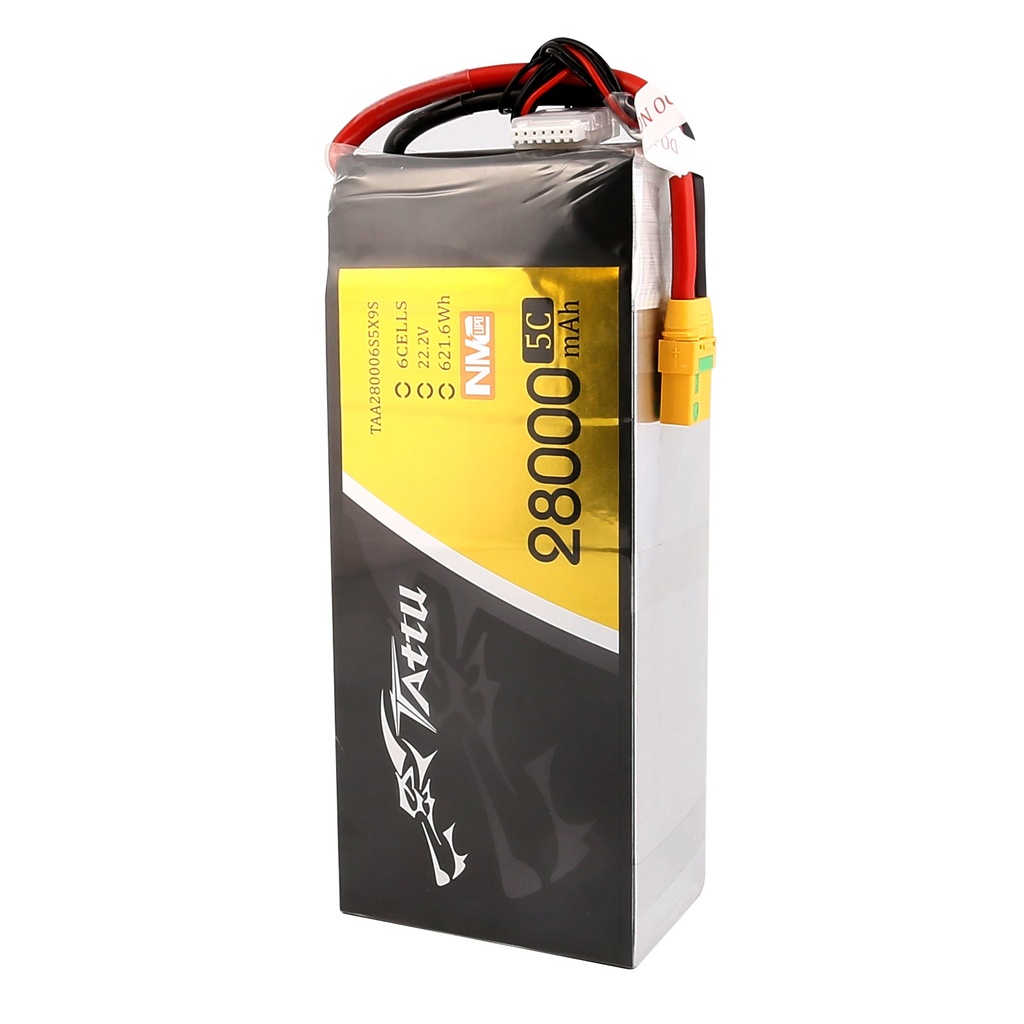

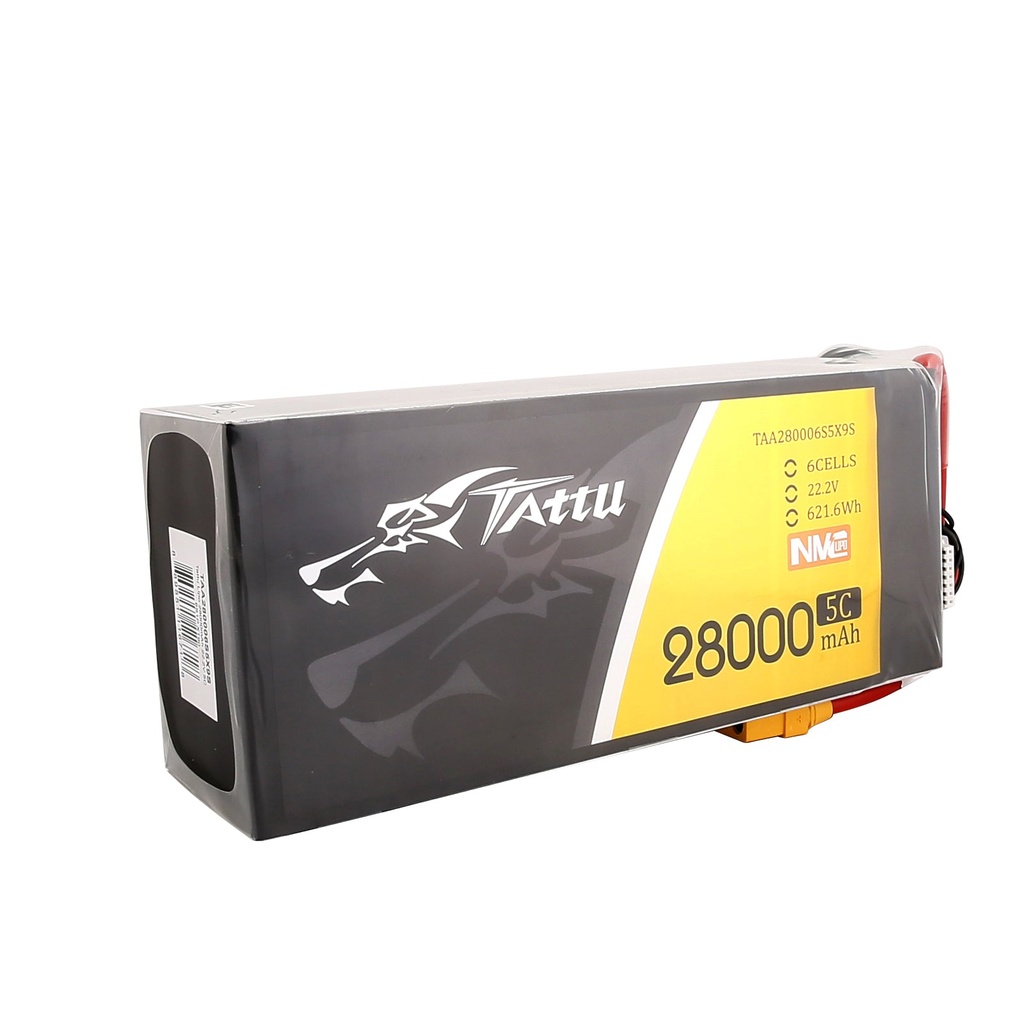

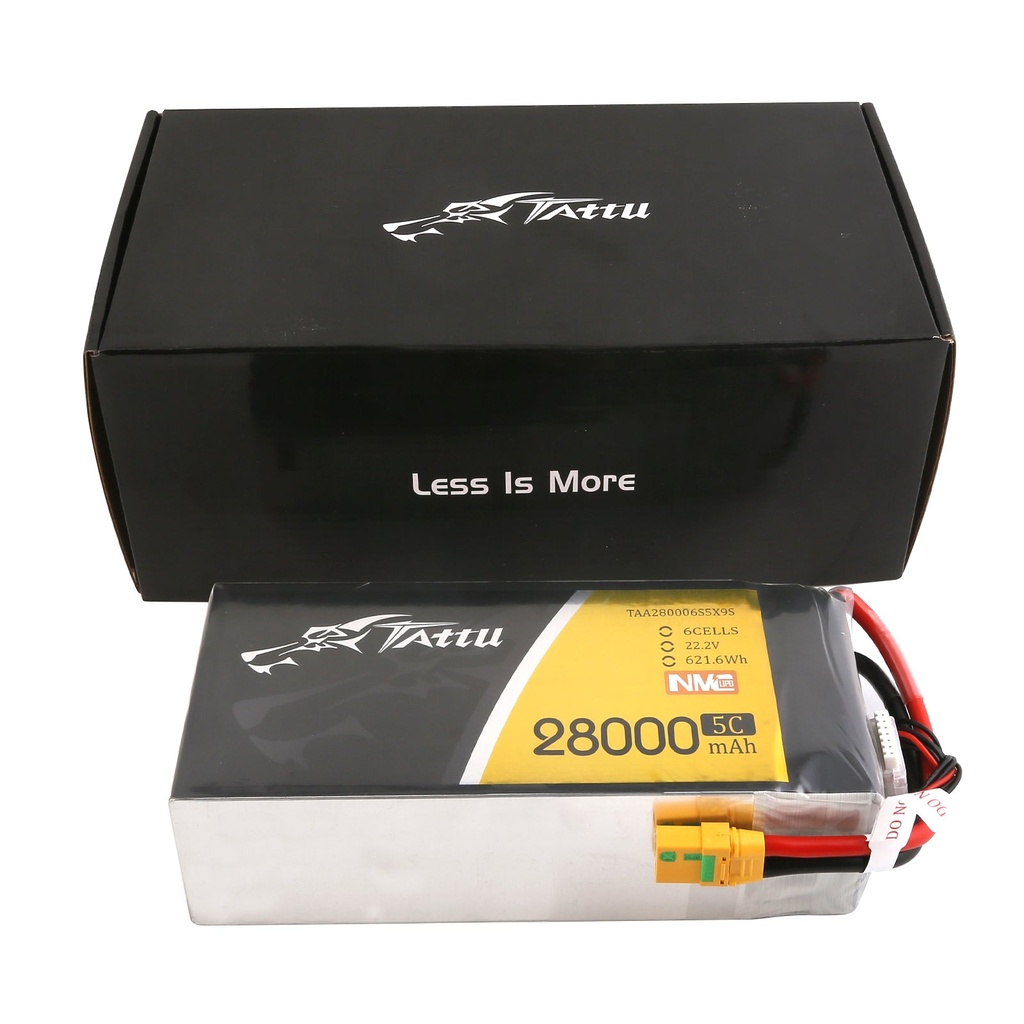

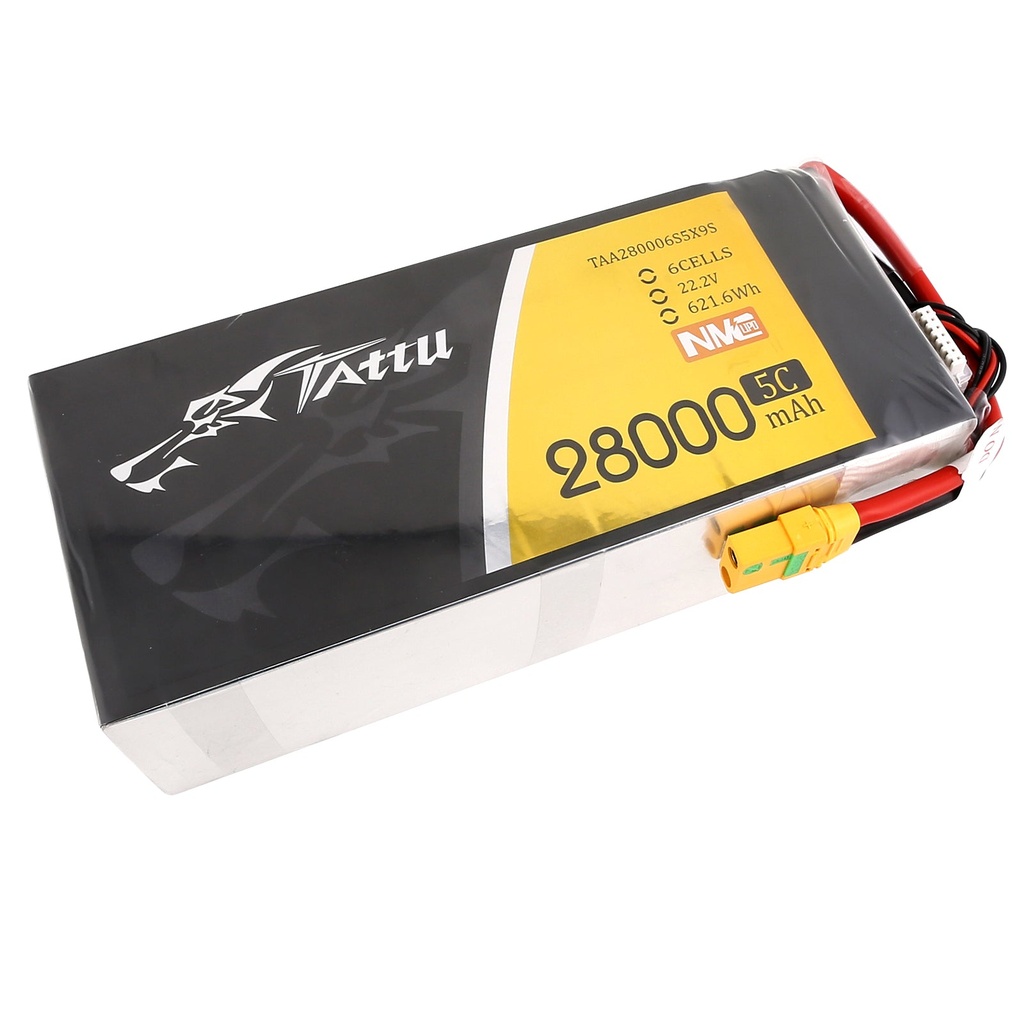

Tattu Semi-Solid State 28000mAh 22.2V 5C 6S1P Lipo Battery Pack with XT90-S plug is a new kind of Semi-solid lipo battery with high energy density and long service life. It is suitable for a variety of small and medium drones; which always are commonly used for mapping; inspection; surveying; delivery industry; etc. They usually need a 1-3C nominal discharge current. The advantage of lighter weight; small volume; and long flight time are fully used.
Key Features:
- Energy Density: High energy density can reach up to 259Wh/kg
- Safety: Resistance to over-discharging until 3.2V
- Long Service Life: 500+ Longer cycle than regular battery model
- More Convenient: 15% Weight Reduction for the same capacity
- Low Discharge Rate: Ultra Low Cut-Off Voltage
- Anti-spark: More secure
Specifications:
- Capacity: 28000mAh
- Voltage: 22.2V/6S
- Discharge Rate: 5C
- NET Weight(±20g): 2580g
- Size: 208*92*62mm
- Discharge Connector Type: XT90-S
- Balancer Connector Type: JST-XHR-7P
- Discharge Wire: 8# 150mm
- Charge Wire: 22# 150mm
Charger:
Recommended use of the Tattu matching charger: TA1000
Tattu TA1000 G-Tech Dual-Channel Charger 25A*2 1000W For 1S-7S Drone Battery
Check for more Tattu UAV/Drone Chargers.
Spezifikationen
| Zellenanzahl | 6 |
| Maximalstrom [A] | 140 |
| Höhe [mm] | 62 |
| Spannung [V] | 22.2 |
| Kapazität [mAh] | 28000 |
| Länge [mm] | 208 |
| Gewicht [g] | 20 |
| Akkutyp | LiPo |
| Entlade-Rate [C] | 5 |
| Breite [mm] | 92 |
| Steckertyp | XT90 |
| Eingangsspannung | AC |
| Ladeausgänge | 2 |
