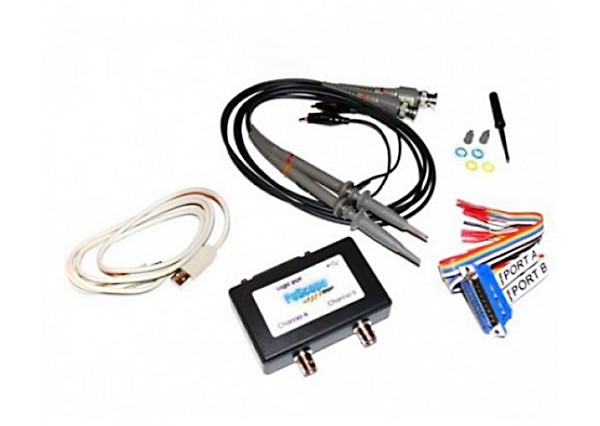

- 1 PoScope mega 1
- 2 PoProbe60
- 1 PoProbeL2
- 1 USB cable
Using the Plug and Play USB technology, the PoScope mega 1 oscilloscope is easy to setup and use. The software is a fully featured oscilloscope, chart recorder, logic analyser, and spectrum analyser with advanced trigering all in one easy to use package.
Low current consumption: 60mA.
2 channels oscilloscope
- Sample rate: up to 1MHz
- Input voltage: -20 - +20 V
- ADC resolution: 12 bits
- Triggering: absolute, differential*
2 channels spectrum analyzer
- Sample rate: up to 1MHz
- Input voltage: -20 - +20 V
- ADC resolution: 12 bits
- Triggering: absolute, differential*
- Window functions: Hamming, Hanning, Blackman, Blackman-Harris
2 channels recorder
- Sample rate: up to 1MHz
- Input voltage: -20 - +20 V
- ADC resolution: 12 bits
- Triggering: absolute, differential*
- Marker measurements*
- Option to add 99 markers with comments*
- Maximum, minimum and average voltage measurement for each channel*
- Waveform record limited by your PC capacity
16-channels logic analyzer
- Sample rate: up to 1 MHz
- Input voltage: 0 - 5V
- Triggering*: edge, level, mask
- Decoding*: UART, SPI, I2C and 1-Wire and others
* will be avaiable as a free upgrade
- Minimum resolution 1024x768@24bit
- RAM 512 MB
- Processor 1GHz
- Windows Xp SP3, Vista, Windows 7, 32 and 64 bit
- free USB slot for each device
